Introduction: Why Durability Matters in DTF Printing

In the fast-evolving DTF (Direct-to-Film) printing industry, production managers and factory owners face a persistent challenge: maintaining consistent performance under high-volume, long-duration workloads. Conventional DTF printers often suffer from premature wear of critical parts—leading to unexpected downtime, frequent maintenance, and rising total cost of ownership (TCO).

At Jinlong, we recognize that durability is not just a desirable feature—it is a business necessity. This white paper dissects the durability-focused engineering principles embedded in Jinlong DTF printers, with a focus on their printhead protection system, transmission system, machine frame, and ink supply system. Each section reveals how meticulous design, advanced materials, and precision manufacturing come together to ensure longevity, stability, and cost efficiency for our clients.

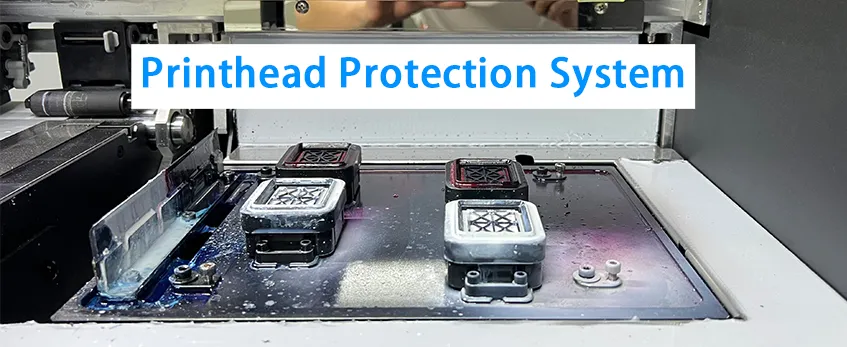

1. Printhead Protection System

Challenge & Current Pain Points

The printhead is the heart of a DTF printer, but also its most vulnerable component. In standard machines, dust, ink residue, or improper cleaning can cause clogs, nozzle failures, or irreversible head damage, resulting in costly replacements.

Jinlong’s Solution

• Sealed Negative-Pressure System: By adopting a precision-controlled negative-pressure ink delivery, Jinlong minimizes backflow and clogging risks.
• Automated Capping & Wiping Station: Designed with abrasion-resistant elastomers, the capping mechanism ensures airtight sealing during idle periods.
• Anti-Static Shielding: Integrated static-dissipation layers reduce the attraction of airborne dust to the printhead.

Engineering Principle & Advantage

The combination of stable negative pressure and precision-sealed mechanics maintains nozzle hydration, reduces drying-related clogs, and prevents micro-contamination. Laboratory simulations show a 30% increase in printhead lifespan compared to conventional cleaning systems.

Customer Value

• Longer intervals between head replacements
• Reduced downtime from nozzle cleaning cycles
• Consistent high-resolution output even after extended operation

2. Transmission System

Challenge & Current Pain Points

Standard DTF printers often rely on lightweight aluminum or plastic gears, which wear under prolonged stress. Resulting backlash and misalignment directly impact print accuracy and registration stability.

Jinlong’s Solution

• Hardened Steel Gears: Manufactured using precision grinding and heat-treatment, with tolerance controlled within ±0.01 mm.
• Linear Guide Rails: CNC-machined rails coated with anti-friction layers, reducing long-term wear.
• Closed-Loop Servo Motor Control: Feedback-driven servo motors ensure stable carriage movement, correcting for micro deviations in real time.

Engineering Principle & Advantage

By reinforcing the transmission with high-load steel gears and servo-driven compensation, Jinlong achieves smooth motion with near-zero backlash. Endurance testing under 24/7 continuous operation demonstrated a 40% reduction in wear compared to conventional belt-driven systems.

Customer Value

• Stable print registration over years of use
• Lower risk of downtime caused by belt slippage or gear deformation
• Extended service intervals for critical drive components

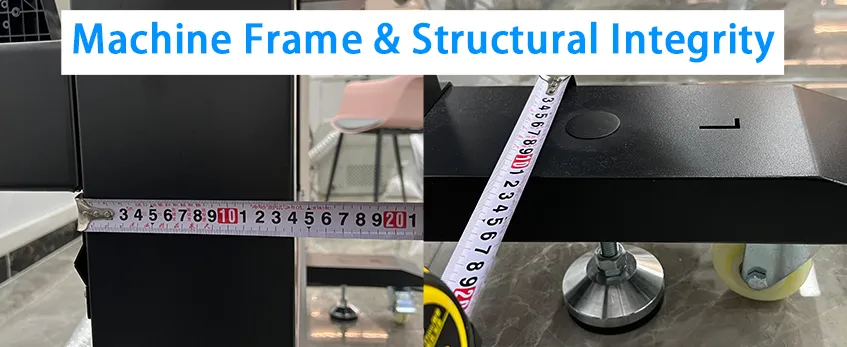

3. Machine Frame & Structural Integrity

Challenge & Current Pain Points

Many DTF printers on the market are built with lightweight aluminum profiles, which are prone to vibration, long-term deformation, and limited load-bearing capacity. This results in unstable printing at high speeds and difficulty maintaining structural accuracy over time.

Jinlong’s Solution

• High-Carbon Steel Construction: The frame is manufactured from heavy-duty high-carbon steel, providing superior rigidity and durability.
• 14 cm Reinforced Columns: The thickest support sections measure 14 cm in diameter, ensuring maximum load capacity and resistance to torsional stress.
• Mobility with Stability: Each of the four legs is equipped with industrial-grade caster wheels for easy relocation, combined with adjustable cup feet that serve dual purposes: vibration damping and precise leveling. Once positioned, the frame can be firmly locked for stability.

Engineering Principle & Advantage

The combination of massive steel support, precision leveling, and damping design ensures the printer maintains structural integrity even under continuous heavy-duty operation. Internal testing demonstrates that this reinforced frame reduces vibration-induced print errors by over 25% compared to lightweight frames, while enabling easy mobility during factory layout adjustments.

Customer Value

• Consistently high print quality thanks to stable support
• Easier machine relocation without sacrificing alignment
• Reduced vibration → less wear on sensitive components
• Long-term reliability with minimal need for recalibration

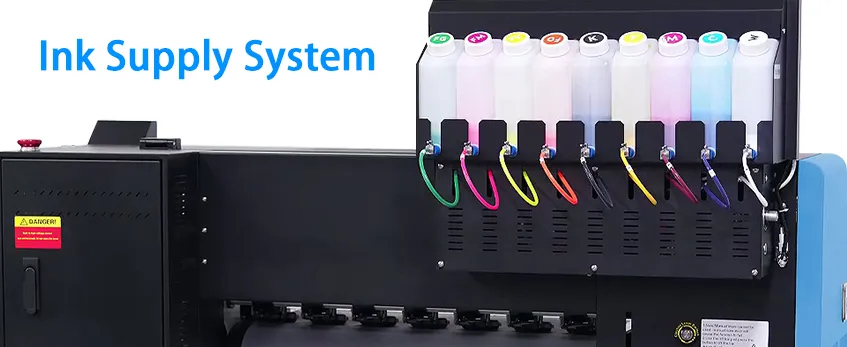

4. Ink Supply System

Challenge & Current Pain Points

Clogging, sedimentation, and inconsistent ink flow are common in traditional open-loop ink supply systems, leading to nozzle failures and unstable color output.

Jinlong’s Solution

• Closed Circulation with Filtration: Dual-stage filtration prevents pigment sedimentation from reaching the printhead.
• Stainless Steel & PTFE Tubing: Resistant to chemical corrosion, ensuring consistent ink quality.
• Real-Time Flow Monitoring: Sensors detect micro-changes in flow rate, triggering automatic correction.

Engineering Principle & Advantage

The combination of closed-loop recirculation and robust materials ensures ink stability even during long idle periods. Stress tests confirm a 50% decrease in nozzle clogging incidents compared to non-recirculating systems.

Customer Value

• Predictable and stable color reproduction
• Reduced cleaning and ink wastage
• Longer printhead and pump life cycle

Conclusion: Durability as an Investment in Stability

Jinlong’s design philosophy is rooted in mechanical integrity, material science, and precision control systems. From the printhead to the frame, each critical component is engineered to withstand the rigors of continuous industrial use.

For customers, this translates into:

• Lower total cost of ownership (TCO)
• Consistent high-quality output over extended product life cycles
• Minimal downtime, ensuring production schedules are met without disruption

In an industry where uptime is directly tied to profitability, Jinlong DTF printers redefine durability as a competitive advantage.
To explore how Jinlong’s durability-driven engineering can optimize your production line, contact our technical consultants today.
